Quick Details
Brand Name:S&A
Model Number:CW-6200AT
Place of Origin:Guangzhou
Certification:CE
Packaging & Delivery
Packaging Details:carton
Delivery Detail:3days
Specifications

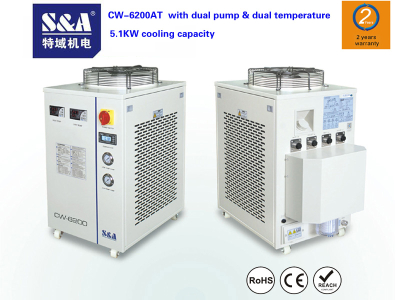

S&A chiller is use for raycus laser power source 1000w
S&A CW-6200AT dual temperature and dual pump series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system, it is applied to cool 1KW-1.2KW fiber laser.
S&A CW-6200AT is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
Features
1. 5100W cooling capacity; optional environmental refrigerant;
2. ±0.5℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;
5. With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;
6. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
7. Multiple power specifications; CE approval; RoHS approval; REACH approval;
8. Long working life and easy operation;
9. Optional heater and water filter.
- Place of Origin: Guangzhou
- Brand Name: teyu
- Model Number: CW-6200AT
Model | CW-6200AT | CW-6200BT |
Voltage | 220V | 220V |
Frequency | 50Hz | 60Hz |
Current | 2~13A | |
Compressor power | 1.68KW | 1.65KW |
2.24HP | 2.2HP | |
High low temp system refrigeration capacity | 1706 Btu/h 15820 Btu/h | 1706 Btu/h 15940 Btu/h |
0.5 KW 4.63 KW | 0.5 KW 4.67 KW | |
430 Kcal/h 3986 Kcal/h | 430 Kcal/h 4016 Kcal/h | |
Refrigerant | R-22 / R-410a | |
Refrigerant charge | 1300g | 1300g |
Precision | ±0.5℃ | |
Reducer | Capillary | |
Protection | Overcurrent protection for compressor, flow alarm, over temperature alarm | |
High low temp pump power | 0.1KW 0.55KW | |
High low temp tank capacity | 4L 12L | |
High low temp pump lift | 25M 36M | |
High low temp inlet and outlet | Rp1/2" Rp1/2" | |
High low temp pump flow | 16L/min 70L/min | |
N.W | 92Kgs | |
G.W | 102Kgs | |
Dimension | 78 x 47 x 89 cm (L x W x H) | |
Package dimension | 87 x 60 x 109 cm (L x W x H) |
